Onboard Hydrogen Supply System (Type III Hydrogen Storage Cylinder)

Onboard Hydrogen Supply System (Type III Hydrogen Storage Cylinder)

Rein's onboard hydrogen supply system is widely adopted in multiple certified vehicle models, including hydrogen-powered heavy trucks, city buses, special vehicles, and logistics vehicles. The hydrogen fuel supply system is designed in strict compliance with GB/T26990-2011 standards. Customization options are available to meet specific needs.

Inquire Now Next Product

Onboard Hydrogen Supply System (Type III Hydrogen Storage Cylinder)

Hydrogen Fuel System	35MPa	70MPa
System Working Pressure	35MPa	70MPa
System Test Pressure	43.75MPa	87.5MPa
System Strength Test Pressure	52.2MPa	105MPa
System Working Voltage	DC24V±4V	DC24V±4V
System Working Environment	-40～+85

Applications

Rein's hydrogen storage equipment is recognized for its safety, reliability, specialty and efficiency, maintaining a leading market share in China.Rein's hydrogen storage equipment is recognized for its safety, reliability, specialty and efficiency, maintaining a leading market share in China.Rein's hydrogen storage equipment is recognized for its safety, reliability, specialty and efficiency, maintaining a leading market share in China.

Hydrogen-powered
heavy trucks

City Buses

Special vehicles

Logistics vehicles

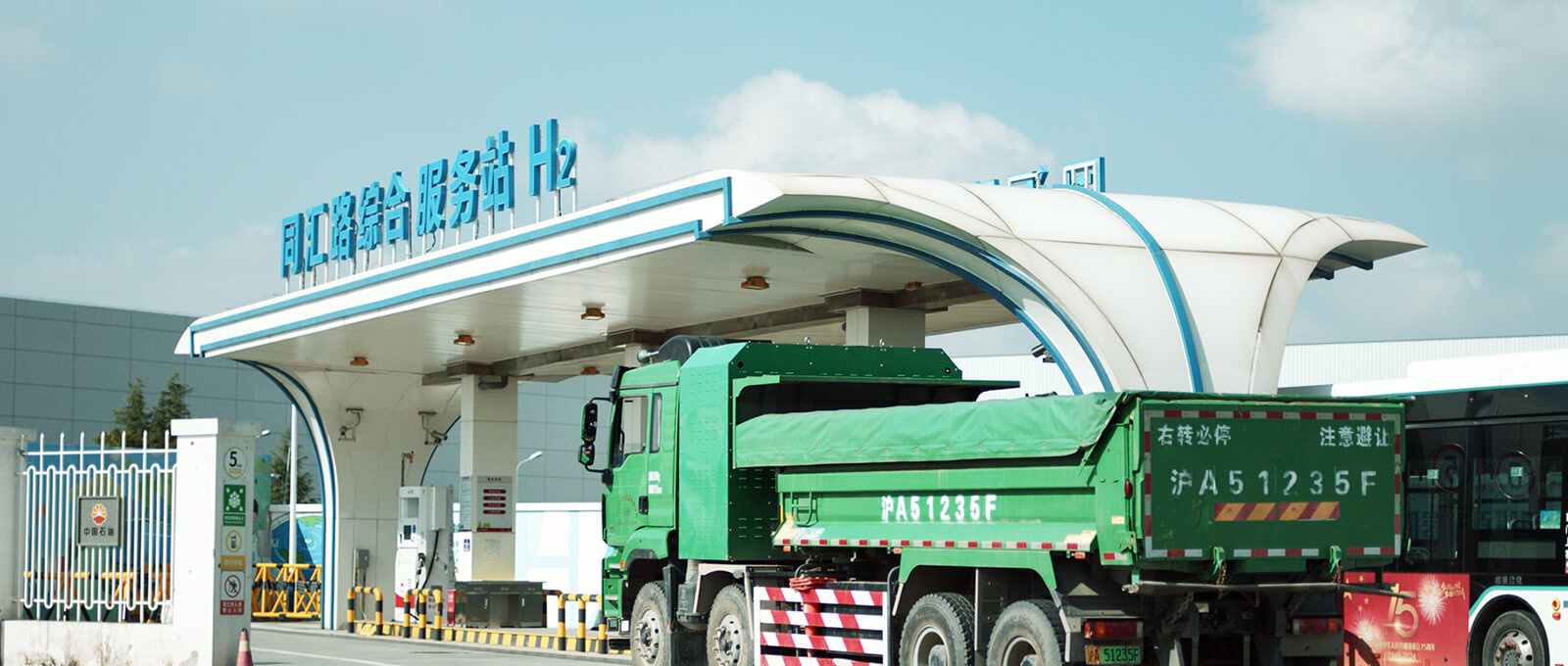

Hydrogen-powered
heavy trucks

Rein's onboard hydrogen supply system is deployed in projects including Shanghai Lingang's inaugural hydrogen-powered heavy trucks, SANY hydrogen-powered trucks, Shanxi Dayun hydrogen-powered trucks, and Shanxi Pengfei hydrogen-powered trucks. Customization options are available to meet specific needs.

Case

Equipped with a 210L x 8-cylinder onboard hydrogen supply system

Range: Approximately 350 km

Framework Dimension	2192x1125x2350 mm (L * W *H )
Nominal Volume of Individual Hydrogen Cylinder	210L
Nominal Working Pressure	35MPa
Outlet Pressure	1±0.2MPa
Hydrogen Filling Capacity	40Kg
Hydrogen consumption per 100 KM (reference)	About 9 Kg

City Buses

Rein's onboard hydrogen supply system is deployed in projects like Shanghai Lingang's inaugural hydrogen-powered city buses.

Case

An 11-meter bus equipped with a 170L x 6-cylinder onboard hydrogen supply system

Range: Approximately 400 km

Framework Dimension	3770x2000x460 mm (L * W *H )
Nominal Volume of Individual Hydrogen Cylinder	170L
Nominal Working Pressure	35MPa
Outlet Pressure	1±0.2MPa
Hydrogen Filling Capacity	24Kg
Hydrogen consumption per 100 KM (reference)	About 5 Kg

Special vehicles

Rein's onboard hydrogen supply system is deployed in hydrogen-powered special vehicles such as concrete trucks and dump trucks.

Case

A 6-cubic meter concrete truck equipped with a 170L x 8- cylinder onboard hydrogen supply system

Range: Approximately 350 km

Framework Dimension	2380x1120x2120 mm (L * W *H )
Nominal Volume of Individual Hydrogen Cylinder	170L
Nominal Working Pressure	35MPa
Outlet Pressure	1±0.2MPa
Hydrogen Filling Capacity	33.5Kg
Hydrogen consumption per 100 KM (reference)	About 9 Kg

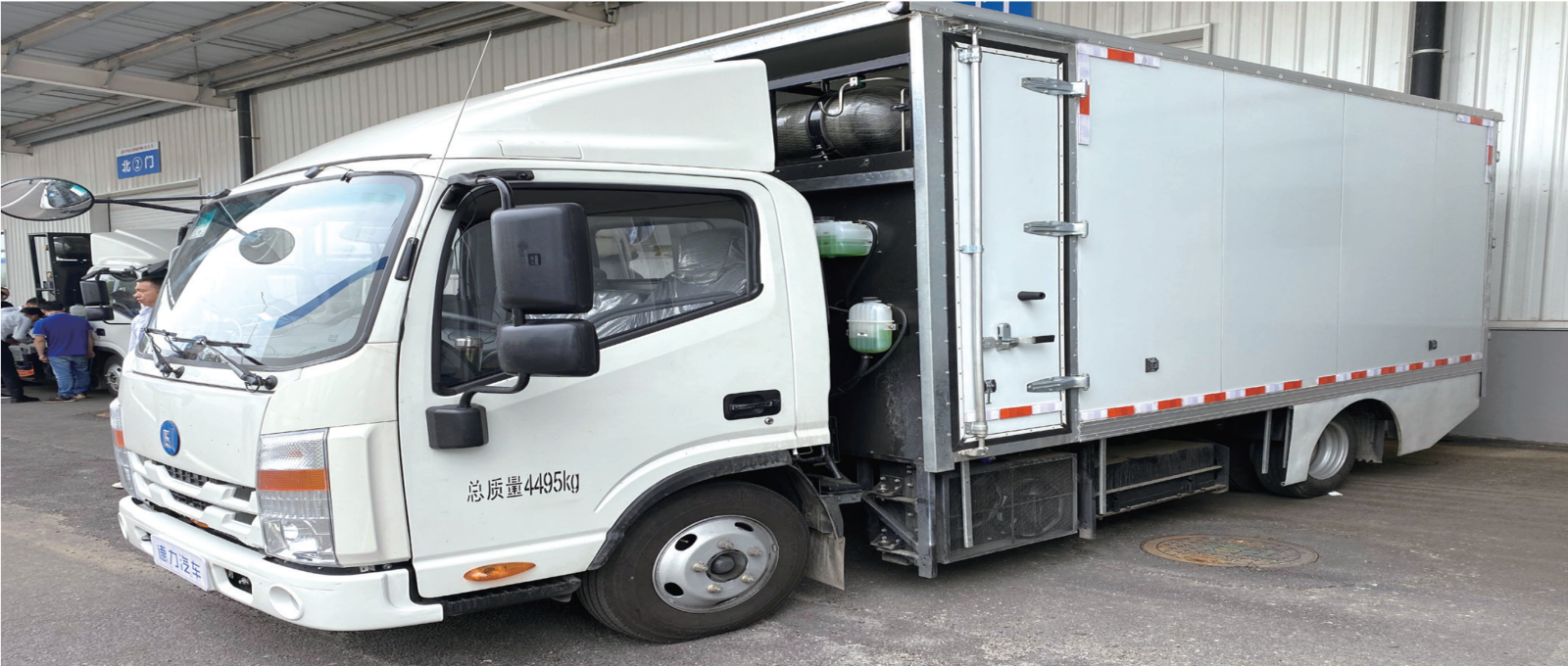

Logistics vehicles

Rein's onboard hydrogen supply system is deployed in projects such as the "Vegetable Basket" logistics vehicles in Henan.

Case

Equipped with a 140L x 3-cylinder onboard hydrogen supply system

Range: Approximately 300 km

Framework Dimension	2380x1120x2120 mm (L * W *H )
Nominal Volume of Individual Hydrogen Cylinder	140L
Nominal Working Pressure	35MPa
Outlet Pressure	1±0.2MPa
Hydrogen Filling Capacity	9.9Kg
Hydrogen consumption per 100 KM (reference)	About 3.1 Kg

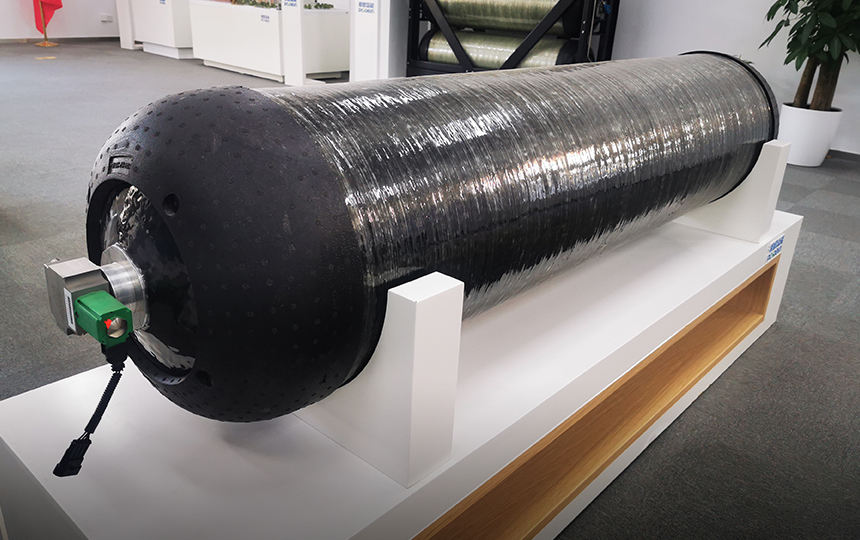

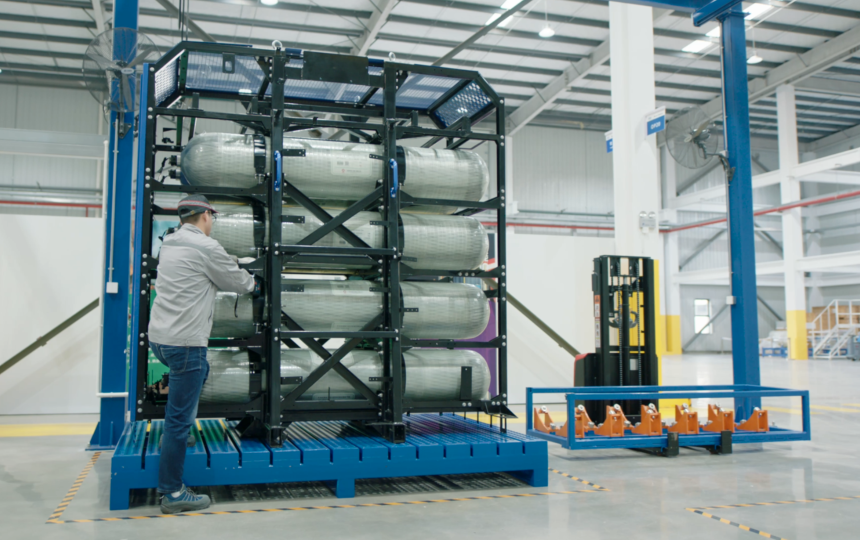

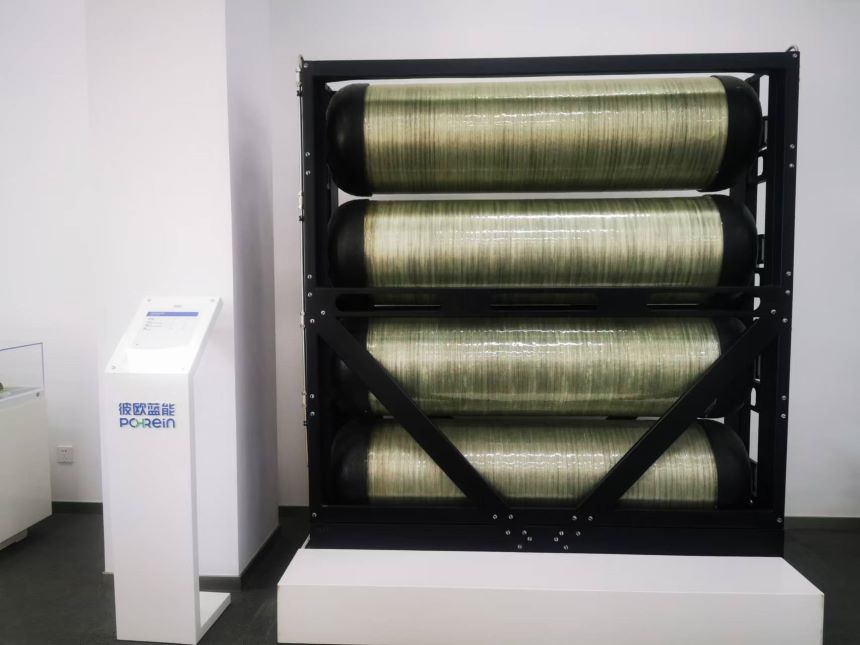

Onboard hydrogen supply system (Type IV Hydrogen Storage Cylinder)

Lighter weight | Higher hydrogen density | Extended range | Longer service life | Enhanced safety | Scalable and customizable design | Easy maintenance and operation Rein, in partnership with France's Plastic Omnium, a Fortune Global 500 company, established PO-Rein (Shanghai) Energy Technology Co., Ltd., introducing state-of-the-art Type IV cylinder technology. With an annual production capacity of 65,000 units, the plant manufactures 70MPa carbon filament winding hydrogen storage cylinders with composite inner-liners (Type IV hydrogen storage cylinders).

Request customization

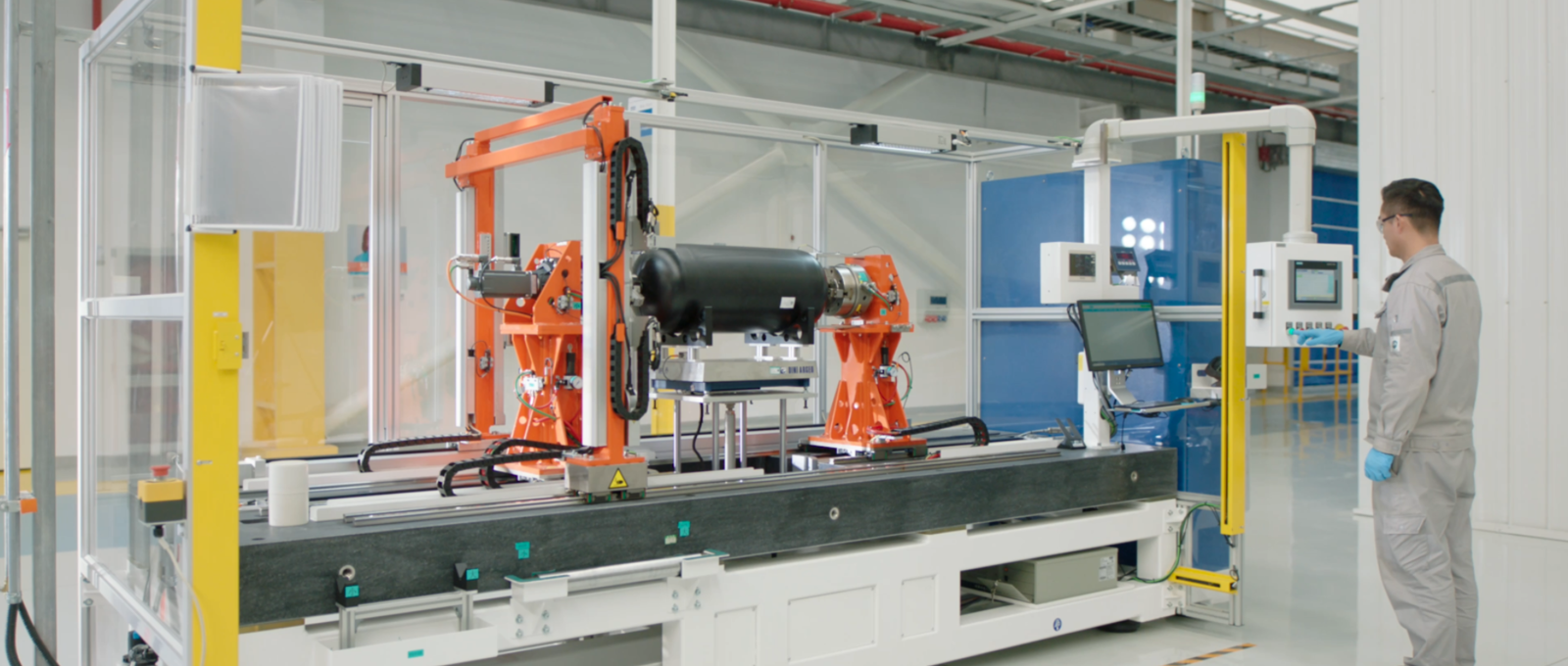

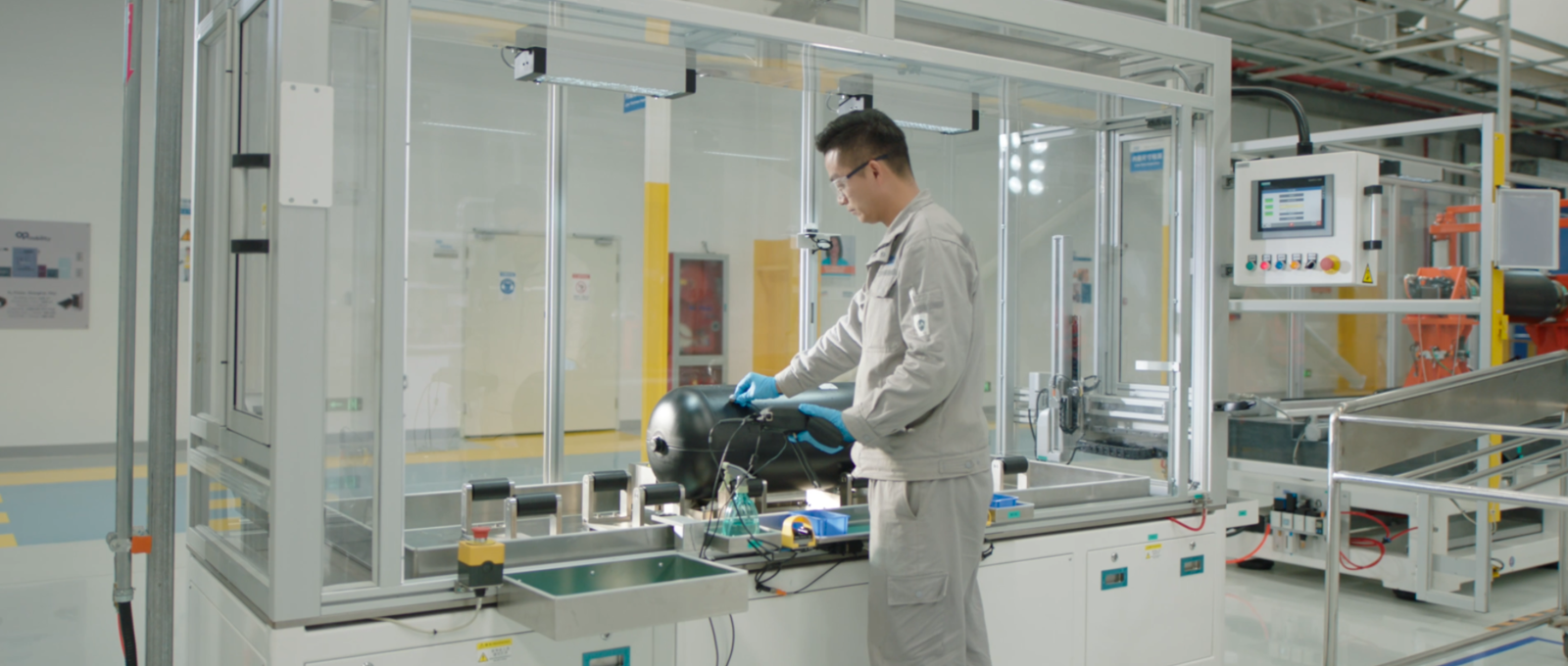

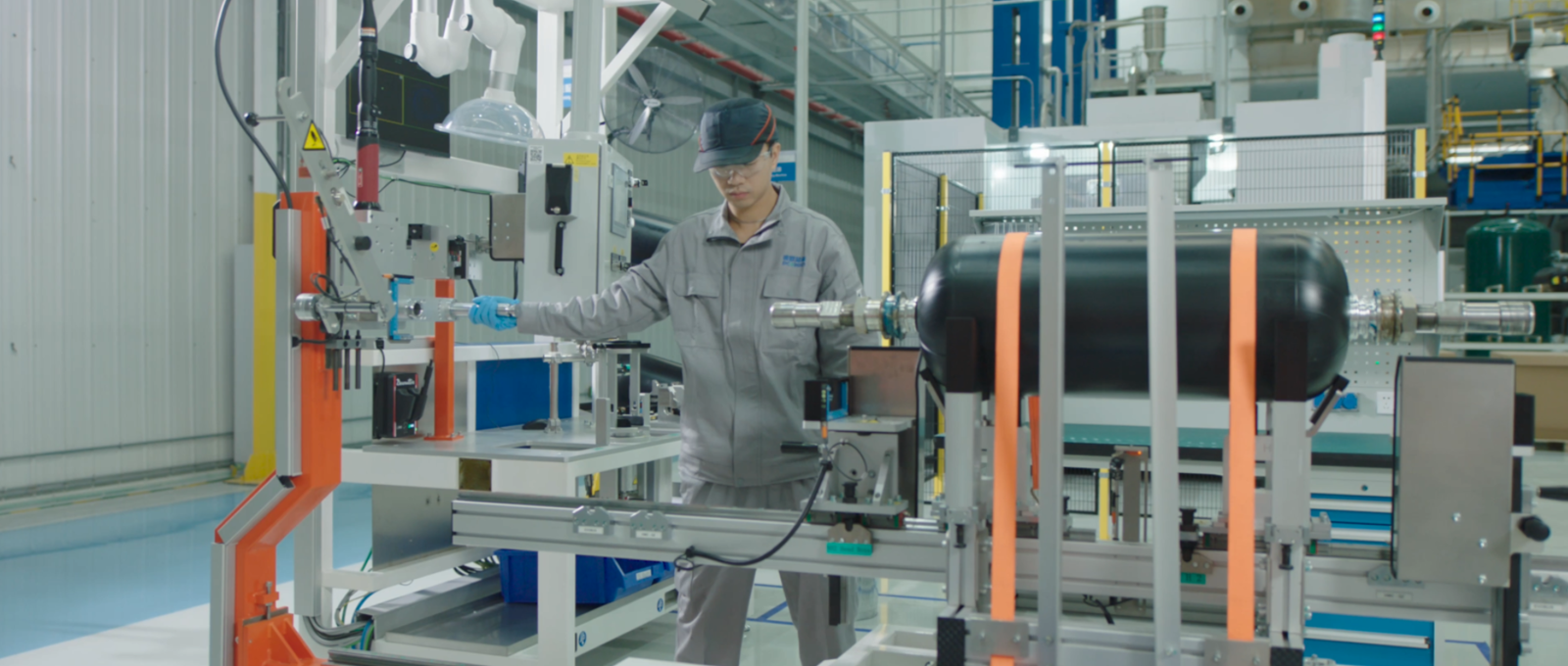

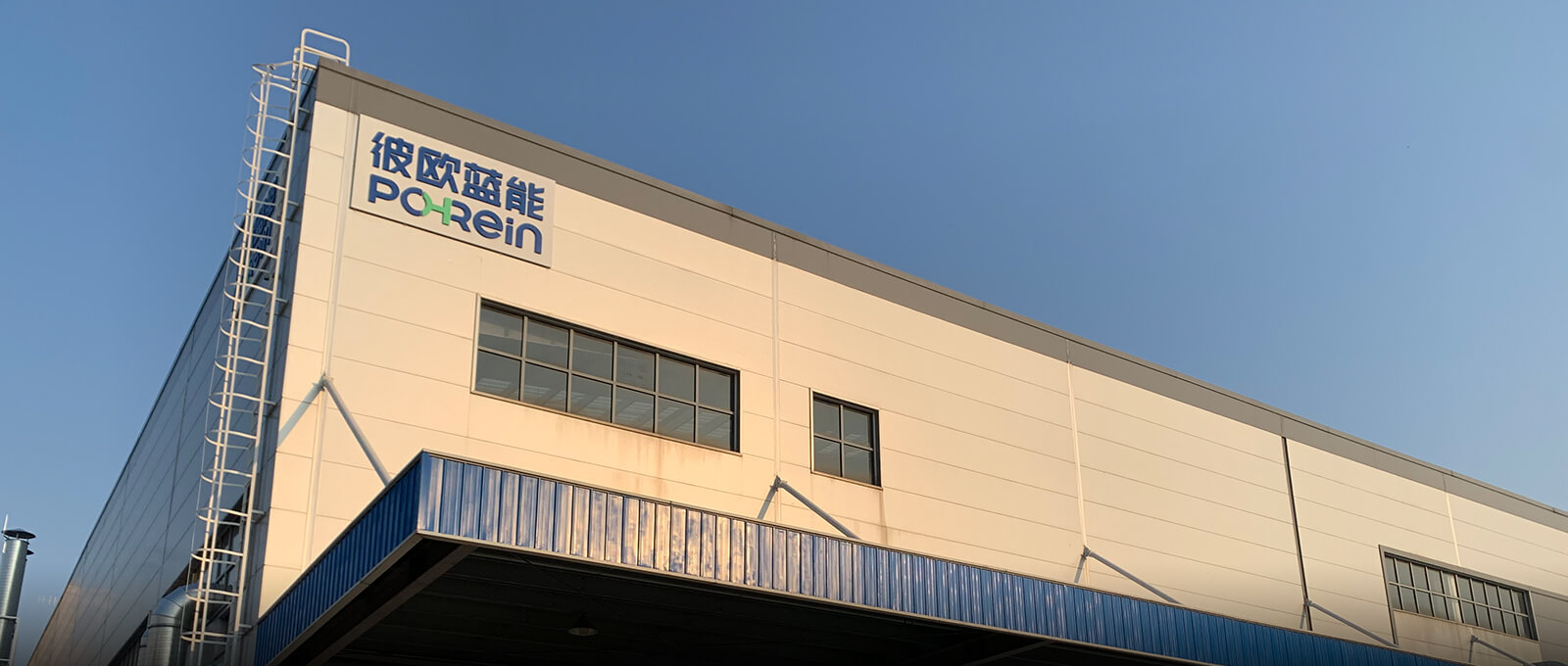

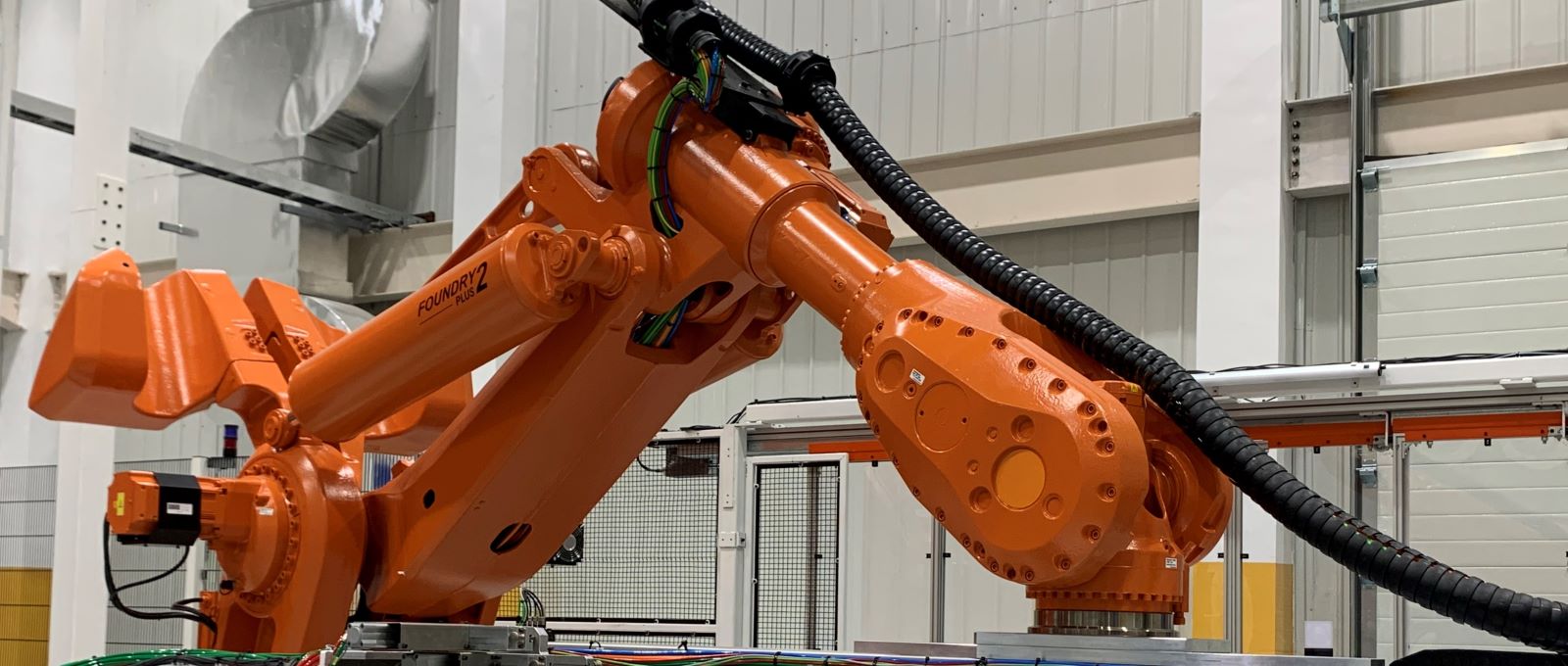

The PO-Rein plant in Jiading District, Shanghai
