Type I CNG Tube Trailers & Tube Skids
Rein Hytec Type I CNG Tube Trailers and Tube Skids are designed for the safe transportation and storage of compressed natural gas (CNG). Built with high-strength seamless steel cylinders, they provide reliable performance for CNG refueling stations, industrial gas distribution, virtual pipeline systems, and energy infrastructure projects. Customized configurations are available to meet different transportation capacities and operating requirements.
Inquire Now What Is a Type I CNG Tube Trailer?
A Type I CNG tube trailer is a high-pressure transportation system that uses seamless steel cylinders to transport compressed natural gas. It is widely used for supplying CNG to refueling stations, industrial facilities, and remote areas without pipeline access.
Compared with composite cylinder solutions, Type I tube trailers offer excellent durability, proven reliability, and cost-effective operation, making them an ideal choice for many commercial CNG transportation projects.
How Does a Type I CNG Tube Trailer Work?

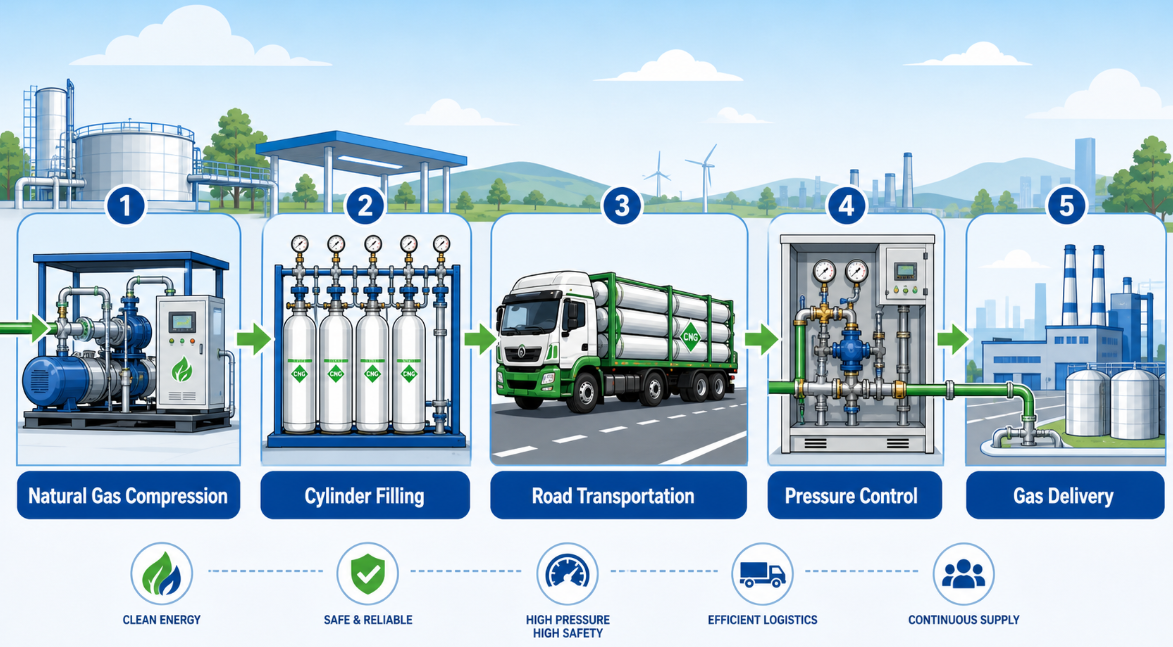

Natural Gas Compression → Cylinder Filling → Road Transportation → Pressure Control → Gas Delivery
Technical Parameters of CNG Tube Skids (Type I)
| Type | Body Material | Filling Medium | Working Pressure | Ambient Temperature | Total Water Volume | Filling Volume under STP | Filling Weight | Tare Weight | Rated Mass | Overall Dimension |
|---|---|---|---|---|---|---|---|---|---|---|
| MPa | ℃ | m³ | Nm³ | Kg | Kg | Kg | mm (L*W*H) | |||
| GSX06-4180-CNG-20 | 4130X | CNG | 20 | -40～+60 | 25.08 | 6150 | 4428 | 30070 | 34500 | 12192X2438X1500 |
| GSX08-2250-CNG-20 | 4130X | CNG | 20 | -40～+60 | 18 | 4540 | 3255 | 25450 | 30480 | 12192X2438X1400 |
| GSX08-2380-CNG-20 | 4130X | CNG | 20 | -40～+60 | 19.04 | 4800 | 3442 | 26315 | 30480 | 12192X2438X1400 |
| GSX08-2580-CNG-20 | 4130X | CNG | 20 | -40～+60 | 20.64 | 5200 | 3730 | 26670 | 30480 | 12850X2438X1400 |
| GSX09-2380-CNG-20 | 4130X | CNG | 20 | -40～+60 | 21.42 | 5400 | 3873 | 29755 | 34000 | 12192X2438X1960 |
| GSX10-2250-CNG-20 | 4130X | CNG | 20 | -40～+60 | 22.5 | 5675 | 4068 | 29920 | 34000 | 12192X2438X1960 |
| GSX12-1060-CNG-20 | 4130X | CNG | 20 | -40～+60 | 12.72 | 3204 | 2298 | 19320 | 24000 | 6058X2438X1980 |
| GSX06-3695-CNG-20 | 4130X | CNG | 20 | -40～+60 | 22.17 | 5610 | 4020 | 29085 | 34000 | 12192X2438X1655 |
| GSX16-1080-CNG-25 | 4130X | CNG | 25 | -40～+60 | 17.28 | - | - | 26470 | 33600 | 6050X2438X2591 |
Technical Parameters of CNG Tube Skids -TPED
| Type | Body Material | Filling MEDIUM | Working Pressure | Working Temperature | Total Water Volume | Filling Volume under STP | Filling Weight | Tare Weight | Rated Mass | Overall Dimension |
|---|---|---|---|---|---|---|---|---|---|---|
| MPa | ℃ | m³ | Nm³ | Kg | Kg | Kg | mm (L*W*H) | |||
| GSX11-1615-CNG-25 | 4130X | CNG | 25 | -50～+65 | 17.765 | 5390 | 3850 | 26000 | 29850 | 7191X2438X2591 |
| GSX14-1075-CNG-25 | 4130X | CNG | 25 | -50～+65 | 15.050 | 4564 | 3290 | 22080 | 25370 | 6058×2438×2591 |
Technical Parameters of Tube Skids
| Type | Body Material | Filling Medium | Working Pressure | Ambient Temperature | Total Water Volume | Filling Volume under STP | Filling Weight | Tare Weight | Rated Mass | Overall Dimension |
|---|---|---|---|---|---|---|---|---|---|---|
| MPa | ℃ | m³ | Nm³ | Kg | Kg | Kg | mm (L*W*H) | |||
| ZLN9370GGY | 4130X | CNG | 20 | -40～+60 | 18 | 4540 | 3250 | 33600 | 36850 | 12960×2480×3010 |
| ZLN9390GGY | 4130X | CNG | 20 | -40～+60 | 22.17 | 5616 | 4020 | 34630 | 36850 | 13000x2480x3095 |
| ZLN9400GGY | 4130X | CNG | 20 | -40～+60 | 25.38 | 6429 | 4180 | 35820 | 40000 | 12910×2480×3000 |
| ZLN9401GGY | 4130X | CNG | 20 | -40～+60 | 23.88 | 6049 | 4000 | 36000 | 40000 | 12391×2480×3200 |
| ZLN9402GGY | 4130X | CNG | 20 | -40～+60 | 24.11 | 6108 | 4000 | 36000 | 40000 | 12391×2480×3605 |
| ZLN9403GGY | 4130X | CNG | 20 | -40～+60 | 23.22 | 5882 | 4100 | 35900 | 40000 | 12960x2480x3300 |
Type I CNG Tube Trailer Specifications
| Feature | Details |
|---|---|
| Product Type | CNG Tube Trailer / Tube Skid |
| Cylinder Type | Type I Seamless Steel |
| Gas Medium | Compressed Natural Gas |
| Application | Gas Transportation & Storage |
| Configuration | Trailer / Skid |
| Custom Design | Available |
Type I vs Type III CNG Tube Trailers
| Feature | Type I | Type III |
|---|---|---|
| Cylinder Material | Steel | Composite |
| Weight | Higher | Lower |
| Payload | Standard | Higher |
| Durability | Excellent | Excellent |
| Cost | Lower | Higher |
| Best For | Standard Transport | High-Capacity Transport |
Why Choose Rein Hytec Type I Tube Trailers?
- Proven seamless steel cylinder technology
- Reliable high-pressure transportation
- Durable construction
- Cost-effective solution
- Custom engineering support
- Global project experience
Application
- CNG Refueling Stations
- Industrial Gas Distribution
- Virtual Pipeline Projects
- Energy Infrastructure
- Emergency Gas Supply
- Utility Companies
Customer-Centric Excellence in Service
After-sales services
After-sales services
Rein's service network spans nationwide, ensuring we are always nearby.
24/7 service hotline: 400-636-7011
Hydrogen engineering construction services
Hydrogen engineering construction services
Rein provides Hydrogen engineering construction services for Hydrogen production stations, Hydrogen filling stations and Hydrogen refueling stations.
Tube trailer rental services
Tube trailer rental services
Rein provides tube trailer rental services for Hydrogen, CNG, and different gas transportation.
Tube trailer inspection services
Tube trailer inspection services
Our tube trailer inspection stations offer full-lifecycle services for tube trailers, including regular inspections, annual checks, and routine maintenance.
Quality information inquiry
Quality information inquiry
We ensure that quality information is traceable.
A Type I CNG tube trailer uses seamless steel cylinders to transport compressed natural gas safely and efficiently.
Type I cylinders are manufactured from high-strength seamless steel for durability and long service life.
They are widely used in CNG refueling stations, industrial gas distribution, and virtual pipeline projects.
Type I trailers use steel cylinders, while Type III trailers use lightweight composite cylinders with aluminum liners.
Yes. Rein Hytec offers customized capacities, cylinder quantities, and trailer configurations.
Rein Hytec provides reliable CNG transportation solutions with advanced manufacturing, quality control, and engineering support.
